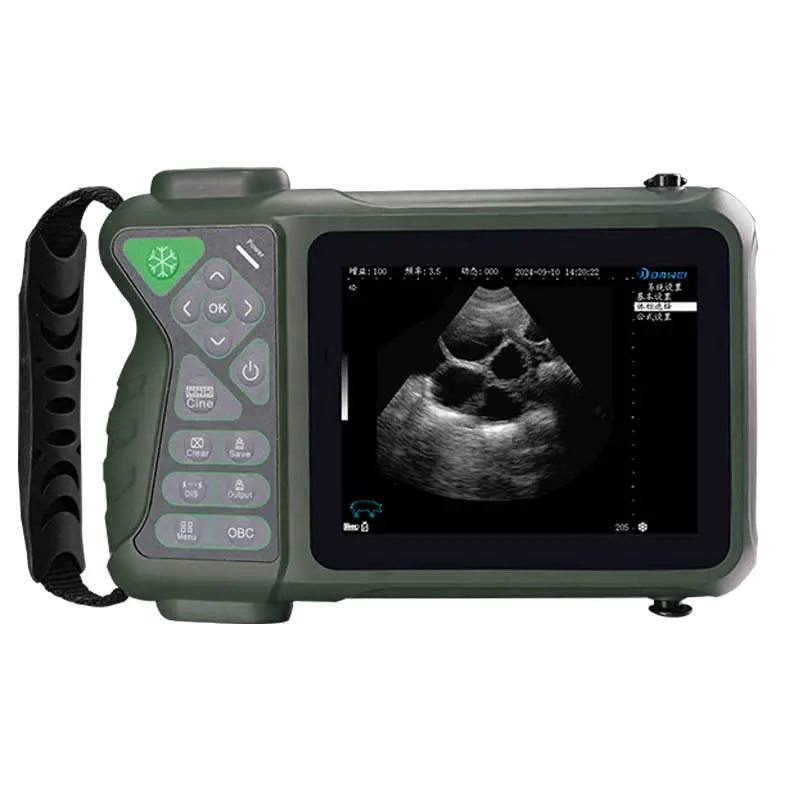

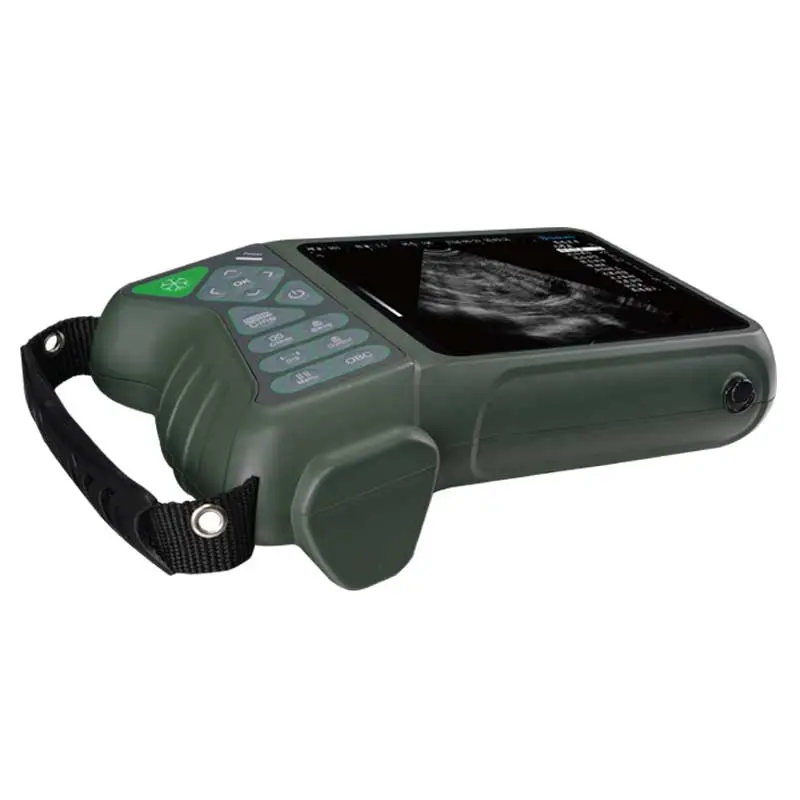

Handheld Veterinary Ultrasound for Swine & Sheep Pregnancy Testing

Why Elite for livestock farms?

• Help improve breeding efficiency with early pregnancy confirmation
• Reduce open days and optimize feeding, housing, and farrowing/lambing planning
• Suitable for routine checks across herds/flocks

Designed for Swine & Sheep Reproduction

Elite is optimized for livestock reproductive ultrasound workflows, helping farms perform early pregnancy confirmation and routine herd checks. Use it as a sow pregnancy ultrasound scanner in pig farms or a sheep pregnancy ultrasound tool for ewes during breeding season.

Use cases :

• Swine / pig / sow pregnancy check
• Sheep / ewe pregnancy scanning
• Farm breeding management and reproductive monitoring

Waterproof Mechanical Sector Probe（Mechanical Fan Scan）

Built for livestock reproduction scanning, the Elite system supports a waterproof mechanical sector probe (mechanical fan scan transducer) designed for stable contact and efficient on-farm workflow.

B-Mode Imaging & Display Modes

Get clear, stable B-mode veterinary ultrasound images with flexible display options:

• Imaging modes: B, B+B, 4B, BM, M
• Image mirror tools: left-right mirror and up-down flip
• Display magnification: 16 modes
• Display depth: up to 221 mm

This makes Elite a reliable handheld livestock ultrasound for fast decisions during pregnancy scanning.

Elite supports cine replay ≥256 frames, allowing continuous playback or frame-by-frame review to confirm key findings during swine and sheep pregnancy checks.

Workflow benefits:

• Review quickly after scanning
• Compare frames to reduce missed observations
• Improve on-farm efficiency for large herds

Cine Loop & Storage

OB Measurements (Multi-Animal)

Elite provides obstetric measurement presets and common measurements for veterinary reproduction work.

General measurements: distance, circumference, area

Obstetric measurements (built-in presets):

Image Optimization Controls

256-level gain (0–255)

Dynamic range:27–90 dB

Image processing controls:

• Post-processing (0–3)
• Frame correlation (0–3)
• Edge enhancement (0–3)
• Color (0–23)
• Image optimization (0–12)
• Contrast (0–63)

Interfaces & Practical Functions

Ports / interfaces:

• USB port
• Probe port
• Charging port
• Video port

Other functions:

• Puncture guidance
• Parameter restore
• Grid

Battery & Mobility

This handheld veterinary ultrasound uses a replaceable rechargeable Li-ion battery:

• Replaceable rechargeable Li-ion battery (default 2600mAh)
• Working time: ~3 hours (optional 5200mAh for ~6 hours)
• Battery level indicator + charging indicator

Size & Weight

• Main unit size: 224 × 71 × 155 mm (L × W × H)
• Main unit weight: ~850g (with optional larger battery ~970g)

Technical Specifications Table
